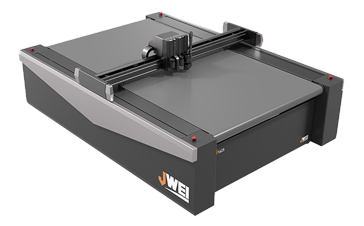

Jwei SG 1625

Introducing the next generation JWEI SG 1625 Intelligent Flatbed Cutter, combining ultra-high-speed performance with all-in-one functionality. precision cutting. Operating at speeds up to 20 m/min, it effortlessly cuts compressed fibre-board, corflute, ABS and PVC board, ACM, acrylic, magnetic sheeting. Handling routing, polishing, bevelling, engraving, and more in one seamless workflow. Its fully automated system features automatic tool head and router bit changes, reducing downtime and eliminating manual errors. A powerful vacuum system offers triple the hold for material stability, while noise reduction tech brings sound levels down to just 64dB.

Powered by a robust rack and pinion drive system, the SG1625 ensures exceptional accuracy and long-term stability - perfect for high-demand, precision-driven production environments.

Key Features

• Ultra-Fast Cutting: Speeds up to 2000mm/s for high productivity, completing jobs significantly faster than with conventional methods.
• All-in-One Functionality: Cutting, routing, v-grooving, polishing, bevelling & engraving in one machine

·         Material Mastery: The SG router can process a vast array of materials, including thick acrylic, high-density foam, MDF, PVC, corrugated board, honeycomb board, and more.

• Camera positioning system: A high-precision camera system provides fast and accurate cutting alignment for printed materials.
• QR code workflow: An integrated QR code module supports automated, small-batch production by automatically recalling and running pre-stored cutting files
• Automated Tool Changes: Minimizes downtime and boosts accuracy
• Precision Motion Control: Proprietary chip with 0.00015s ultra-fine movement and enhanced small cutting accuracy down to 1mm diameter level.
• Strong Vacuum & Low Noise: Triple suction power with quiet 64dB operation
